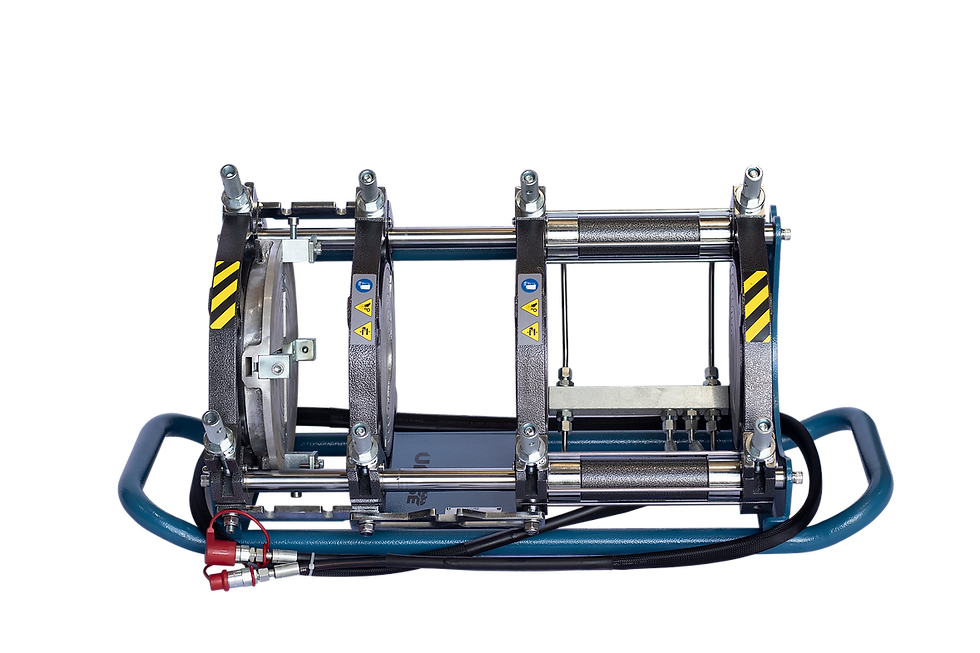

U-FUSE® 250 Butt Welder 63-250mm - Includes Full Set of Liners & Stub Device

The Australian designed UFUSE 250 electric hydraulic butt welder is capable of welding HDPE and PP pipe with a size range from 63mm to 250mm (outside diameter).

Designed to weld HDPE pipe according to DVS 2207-1, ISO 21307 and POP003 high and low-pressure specifications.

This butt welder is wired ready to accept a data logger.

Set of inserts OD 63, 75, 90, 110, 125,140mm 160mm, 180mm, 200mm, 225mm and main clamp OD 250mm.

• Easy to use

• Robust

• Flexible use

• Safe

• Especially torsionally stiff weight-optimized frame

Includes:

Extractable heating plate and milling cutter • 4 jaw main carriage • Electro-hydralic gearcase • Heating plate and milling cutter support • Tool kit • Stub end device (spider)
